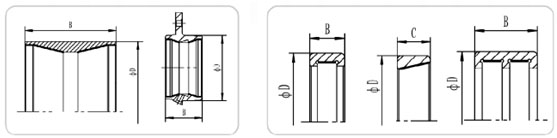

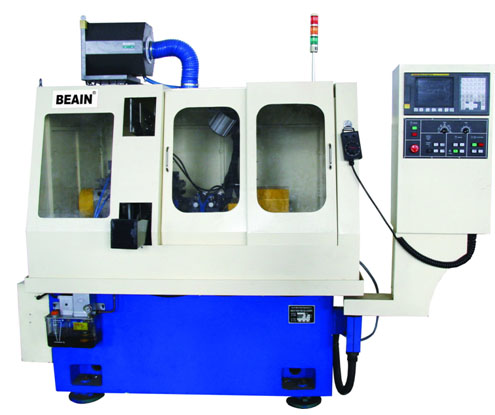

CNC OUTER TRACK (CROWNED) SUPERFINISHING MACHINE

FOR ROLLER BEARINGS





Main Applications
Outer track (crowned) superfinishing for single/double row cylindrical and tapered roller bearings.

Main Features
1. Implemented with Japan's FANUC all digital servo system (2-axis) with color display, "man-machine conversation" interface, manual pulse generator and self-diagnostics, the control system is stable, reliable, easy to maintain and convenient in adjustment.
2. Work spindle drive and oscillation slide motors are speed-variable with F.C.
3. Workpiece is gripped with an electromagnetic centreless chuck, supported by idle wheels and held on end-face also by idle wheels.
4. The stone oscillation slide is driven by servo motor and guided by cross roller guideway (THK make).
5. Automatic loading and unloading manipulator is stable, reliable, versatile, easy to adjust and free from dent mark on workpieces.
6. The moving trace of the stone can be set according to processing requirements to maintain the geometrical profile of the workpiece to its pre-honing shape.
7. The surface visual quality is excellent and even in color.
8. 3MZ3410CNC has two stations for rough honing and fine honing respectively. 3MZ3416CNC, 3MZ3420CNC, 3MZ3425CNC, 3MZ3435CNC and 3MB3445CNC use one-station-two-steps technology in which the rough honing and fine honing stones can be automatically indexed.
9. Filtration system for cooling liquid uses magnetic+honeycomb type filter or magnetic+non-woven filter cloth.
10. Machine is operated by pneumatic or hydraulic system.
11. Centralized lubrication system provides timing, quantitative and duly lubrication of ball screws.
12. High grade cast-iron machine body with double aging treatment assures the overall accuracy performance.
13. Painted and enclosed machine guard is nice looking and splash-proof and has a long service life.

Main Specifications
Machine model
Workpiece OD
mm
Workpiece width
mm
Straightness of tracks
Total power
kW
Weight
kg
3MZ3410CNC
30-100
10-40
Straight or 1-8 um crowning (designed upon customer’s request
12
3000
3MZ3416CNC
60-160
15-67
14
3000
3MZ3420CNC
80-200
20-70
15
3000
3MZ3425CNC
100-250
30-80
17
3500
3MZ3435CNC
190-350
40-110
18
3500
3MB3445CNC
180-450
30-150
20
3500

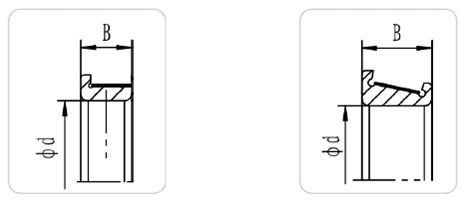

CNC INNER TRACK (CROWNED) SUPERFINISHING MACHINE

FOR ROLLER BEARINGS







Main Applications
 Inner track (crowned) superfinishing for single/double row cylindrical and tapered roller bearings.

Main Features
1. Implemented with Japan's FANUC all digital servo system (1 or 2-axis) with color display, "man-machine conversation" interface, manual pulse generator and self-diagnostics, the control system is stable, reliable, easy to maintain and convenient in adjustment.
2. Work spindle drive and oscillation slide motors are speed-variable with F.C.
3. Workpiece is gripped with an electromagnetic centreless chuck, supported by idle wheels and held on end-face also by idle wheels.
4. The stone oscillation slide is driven by servo motor and guided by cross roller guideway (THK make).
5. Automatic loading and unloading manipulator is stable, reliable, versatile, easy to adjust and free from dent mark on workpieces.
6. The moving trace of the stone can be set according to processing requirements to maintain the geometrical profile of the workpiece to its pre-honing shape.
7. The surface visual quality is excellent and even in color.
8. 3MZ336CNC has two stations for rough honing and fine honing respectively.  3MZ3310CNC, 3MZ3310DCNC, 3MZ3316CNC, 3MZ3320CNC, 3MB3330CNC and 3MZ3330ACNC use one-station-two-steps technology in which the rough honing
and fine honing stones can be automatically indexed.
9. Machine is operated by pneumatic or hydraulic system.
10. Filtration system for cooling liquid uses magnetic+honeycomb type filter or magnetic+non-woven filter cloth.
11. Centralized lubrication system provides timing, quantitative and duly lubrication of ball screws.
12. High grade cast-iron machine body with double aging treatment assures the overall accuracy performance.
13. Painted and enclosed machine guard is nice looking and splash-proof and has a long service life.

Main Specifications
Machine model
Workpiece ID
mm
Workpiece width
mm
Straightness of tracks
Total power
kW
Weight
kg
3MZ336CNC
15-60
12-40
Straight or 1-8 um crowning (designed upon customer's request
8
3000
3MZ3310NC
50-120
20-70
10
3000
3MZ3310DCNC
50-120
20-70
10
3000
3MZ3316CNC
80-160
30-80
12
3500
3MZ3320CNC
90-200
40-110
13
3500
3MB3330CNC
150-300
30-150
15
3800
3MB3330ACNC
150-300
30-300
15
4000
